Gas Laws and Saturated Fumes Coordinated with Computer Measurement System

Название Продукция: Gas Laws and Saturated Fumes Coordinated with Computer Measurement System
модель: YS031

Подробно о продукте: Gas Laws and Saturated Fumes Coordinated with Computer Measurement System

Set for the study of thermodynamics, gas laws and the laws of saturated gases, coordinated with computer measurements.

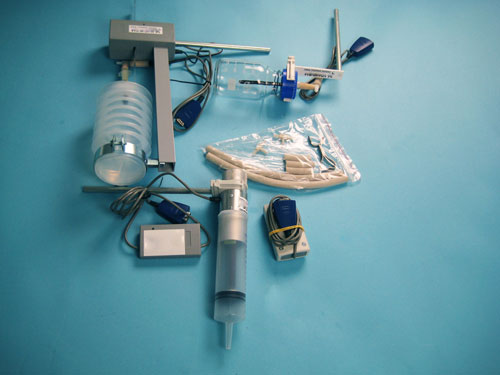

Set completing:
1.unit for isothermal process demonstration with built-in gas volume/temperature sensor;
2.unit for isochoric process demonstration with built-in temperature sensor;
3.unit for isobaric process demonstration with built-in gas volume sensor;
4.pressure sensor;
5.tube clamp;
6.T-joint - 2 pieces;
7.connecting choke( to connect vacuum pump);
8.vacuum tube;
Additional accessories: PC, computer measurements, vessel fro water, vacuum pump.
–demonstration of the main objective laws,which are on a theme "Molecular physics"
-introduction of such concepts as isoprocess in ideal gases
-gas activity
-cyclic process
-saturated fumes
The set is used under conditions of the temperature from+10 to +35°C,and relative air humidity till 80% with the temperature 25°C.
Specifications:
Volume of the vessel contained in the unit isothermal process,cm³30-120
Volume of the vessel contained in the unit isochoric process,cm³250
Volume of the vessel contained in the unit isobaric process,cm³300-720
Absolute pressure sensor measuring range,Pa 0-2⠁10⁵
Vacuum tube inner diameter,mm 4
Operating life ,no less than 5 years.
