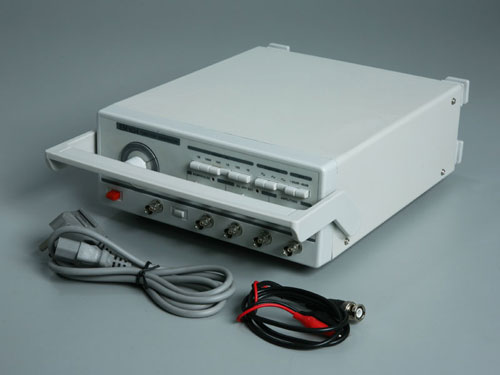

Sound Frequency Generator

Название Продукция: Sound Frequency Generator
модель: PE074

Подробно о продукте: Sound Frequency Generator

The generator is used for reception of harmonious and periodic pressure of the triangular and rectangular form up to 100 k h z in laboratory works at research of the acoustic phenomena, electric circuits of an alternating current with active and reactive loads. The generator should form simultaneously three types of signals: rectangular, triangular and sine wave signals of pressure and provide a choice of one of 6 ranges of frequency. Exact frequency of generation should be provided due to creation of a corresponding operating pressure.
1. Characteristics:
1.1 Overall dimensions of the generator, mm.
Length no more than 200.
Width no more than 175.
Height no more than 60.

1.2 Weight of the generator, kg no more than 1.2.
1.3 Feed of the generator is carried out from AC network by pressure, V 220±22.
by frequency, Hz 50±0,4.
1.4 Power consumption of the generator, В·А no more than 25.
1.5 Generator provides formation of a target variable pressure with frequency in ranges, Hz:
From 0,1-10 % up to 1+10 %
From 1-10 % up to 10+10 %
From 10-10 % up to 100+10 %
From 100-10 % up to 1000 + 10 %
From 1000-10 % up to 10000+10 %
From 10000-10 % up to 100000+10 %
1.6 Form of a target signal:
-triangular;
-rectangular;
-sine wave.
1.7 Generator provides smooth adjustment of target variable pressure amplitude. A range of smooth adjustment of a target variable pressure:
The bottom limit, V 0.
The top limit, V 10±0,25.
1.8 Factor of nonlinear distortions at formation of a target variable pressure of the sine wave form, no more than 2 %.
1.9 Duration of an impulse front at formation of a target variable pressure of the rectangular form, no more than 2 m k s.
1.10 Values of load resistance, not less 8 Ohms.
1.11 Operating time to failure, not less than 1000 h.
1.12 Mean life time of the generator, not less than 5 years.

2. The generator consists of following basic units:
- stabilizer of a feed;
- emetteur;
- controles;
- cable d'alimentation.
