1. Welding Range: 160,180,200,225,250,280,315 MM
2.Main frame includes
3 light weight alloy main clamps of 315mm diameter. 4.Removable cast Aluminum DuPont Teflon coated heating plate with electronic temperature control.
4.Removable cast Aluminum electric facing tool with current overload protection.
5.Electro hydraulic pump with controls, and quick release hoses.
6.Stand for heating plate and facing tool.
7Optional stub end device for welding end fittings (available in aluminum or steel).
8.Tool box including spare blades, thermocouple, temperature controller etc.
9.Optional wheeled trolley available.
10.Customer-Oriented Service
| Model | RJQ RJQ-315 | |

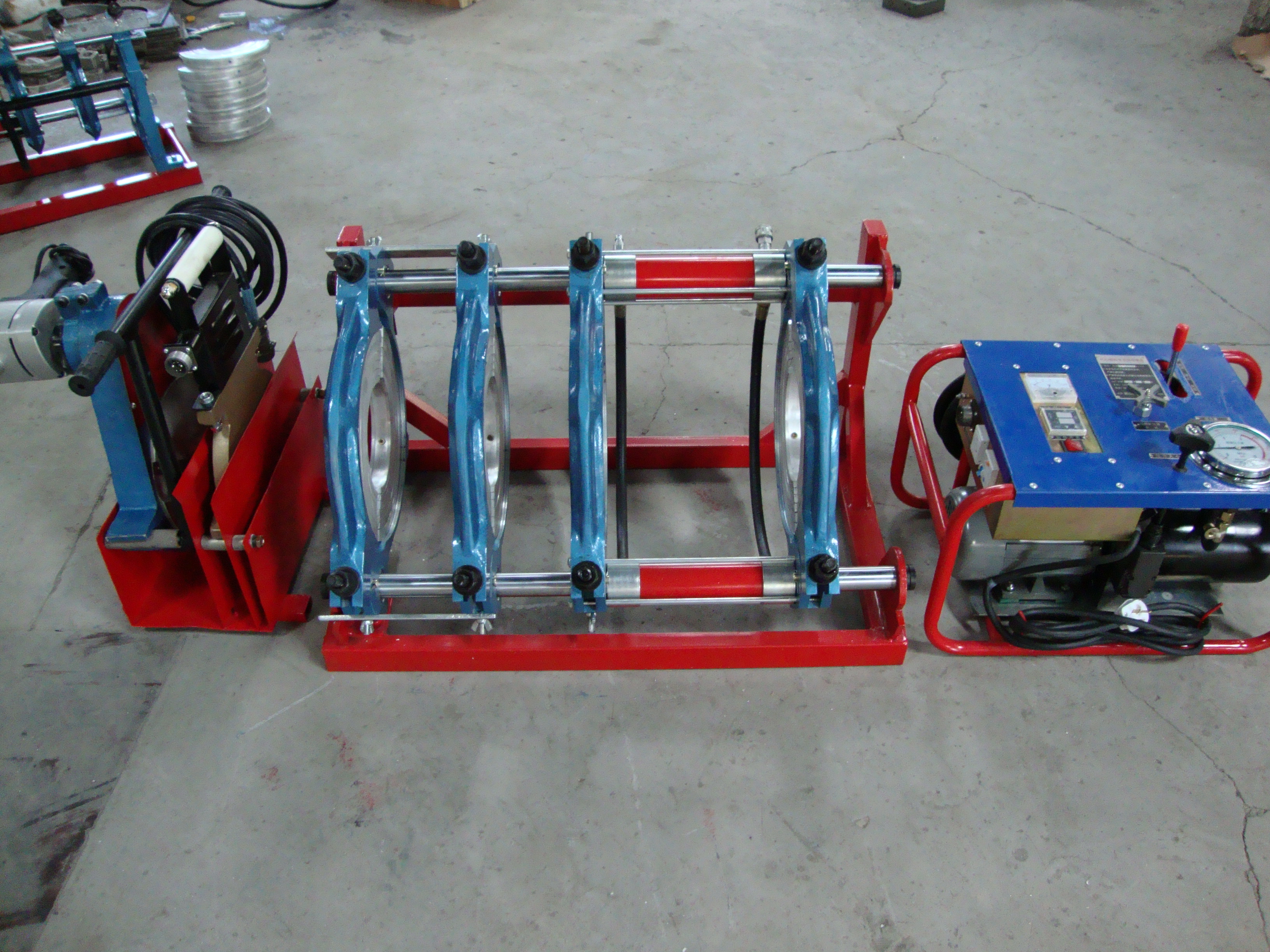

| Name | Hydraulic Butt Fusion Machine | |
| Pipe Size(mm) | 160,180,200,225,250,280,315 | |
| Heating Plate Max.Temp | 270°C | |
| Temp.Daviation | ±5°C | |
| Pressure Adjusttable Ranges | 0-10Mpa | |
| Working Voltage | 220V, 50HZ (60HZ IS OPTIONAL) | |
| Heating Plate Power | 2.8KW | |
| Planing Tool Power | 1.0KW | |
| Hydraulic Unit Power | 0.75 KW | |
| Total Power | 4.55 KW | |
| Net Weight | 210 KGS | |
| Packing Dimension(CM*CM*CM) | Basic Frame | 120*60*61 |
|
69*46*46 |
||
| Hydraulic Unit | ||
